Liquid Epoxy Resin for High Voltage Insulation Casting

Name: Liquid Epoxy Resin for High Voltage Insulation Casting
Brand: WENYOU
Price: 1 USD

Quality Liquid Epoxy Resin for High Voltage Insulation Casting for sale

Place of Origin : Shanghai, China

Brand Name : WENYOU

Model Number : LE8516X

MOQ : 20

CAS No. : 3130-19-6

Molecular Formula : C20H30O6

EINECS No. : 221-518-5

Classification : Double Components Adhesives

Main Raw Material : EPOXY

Color : light yellow

Flash Point : 140

Viscosity : 0.4-0.8

Density : 1.17-1.24

Viscosity at 25℃ : 1500-3500 mpa.s

Density at 25℃ : 1.16-1.20 g/cm3

Flash Point (ISO) : About 135 ℃

Epoxy Resin : LE-8516X 100pbw

Hardener : LH-8516X 100pbw

Accelerator : LZ-622 0.2-0.4pbw

Contact Now

Product Description

Bi-component Epoxy resin system/Liquid can be used to processes of Conventional casting process under vacuum. Excellent splitting resistance& heat shock resistance Excellent technical&mechanical properties. Property

Medium&high voltage insulation switch parts,such as: Insulators,10kv\35jv cyrrebt&voltage transformers and dry-type transformers etc.
Formulation

Epoxy resin	LE-8516X	100pbw
Hardener	LH-8516X	100pbw
Accelerator	LZ-622	0.2-0.4pbw
Filling	Silica flour(SIO2)	250-350pbw

Product data

LE-8516X is a kind of modified epoxy resin

Properties	Standard	Unit	Value
Viscosity at 25℃	ISO 12058	mpa.s	1500-3500
Density at 25℃	ISO 1675	g/cm3	1.16-1.20
Flash point	ISO 1523	℃	About 135

Detailed Images

Liquid Epoxy Resin for High Voltage Insulation Casting

Application

Our company products be used for medium&high voltage insulation .

Our company products be used for electrical insulators .

Our company products be used for transformers.

APG Process

Applications

Current transformer

Good product liquidity, Fast and stable curing time Wide temperature adaptability,

Less repair work for products

Product stability is one of the biggest pain points for customers

Insulator

Stabilize and improve the flame retardant performance of materials while ensuring their insulation performance

Stable and excellent flame retardant materials meet the requirements of the EU Rose Directive

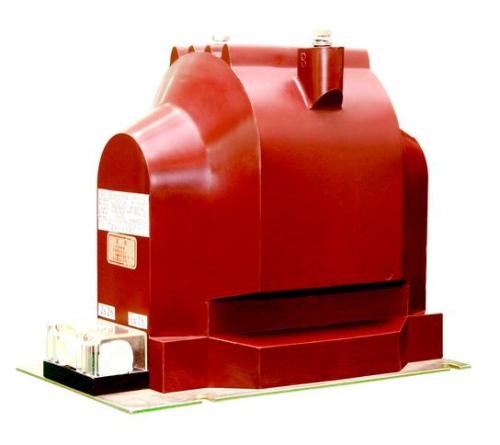

Voltage transfomer

The TG of the epoxy resin system for transformer products is at 75 ℃ or 85 ℃

The product meets the low temperature resistance of - 40 ℃

The company name originated from this initial intention

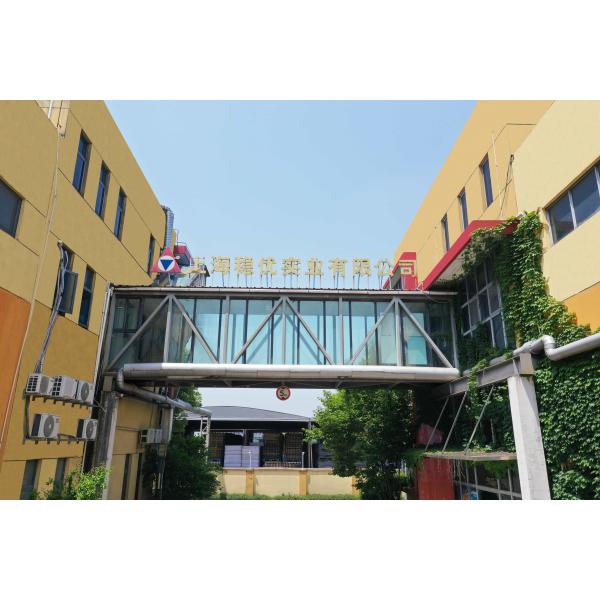

Our factory

Our Company

Shanghai Wenyou Industry Co., Ltd. is a professional epoxy resin company in
Fengxian,Shanghai, China, specializing in the manufacturing, R&D, and sales of epoxy resin, curing agents, and related products.
Our wide range of products includes epoxy resin, flame retardant resin, curing agents, outdoor modifiers, toughening agents, epoxy
paste, demoulding agents, and fillers.

Our Company

We have obtained ISO9001, ISO14001, SGS, and UL certifications, and our products comply
with ROHS and REACH safety regulations. Our high-quality products are used in high voltage electrical insulation applications and
are exported globally. We are committed to providing stable products and excellent service to the global electricity industry.

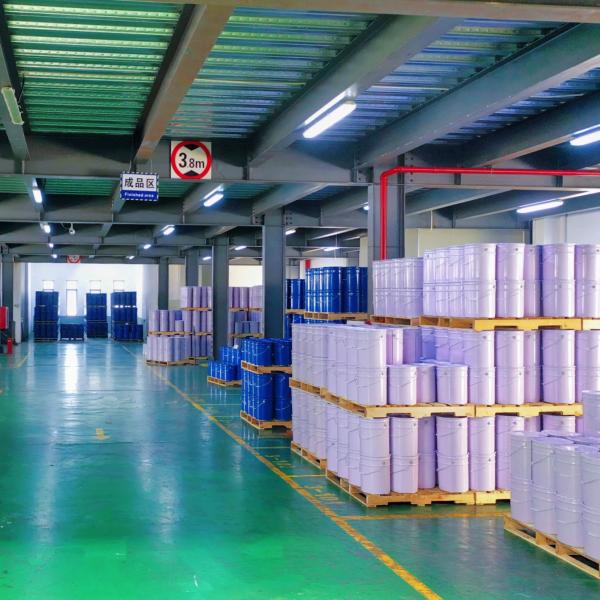

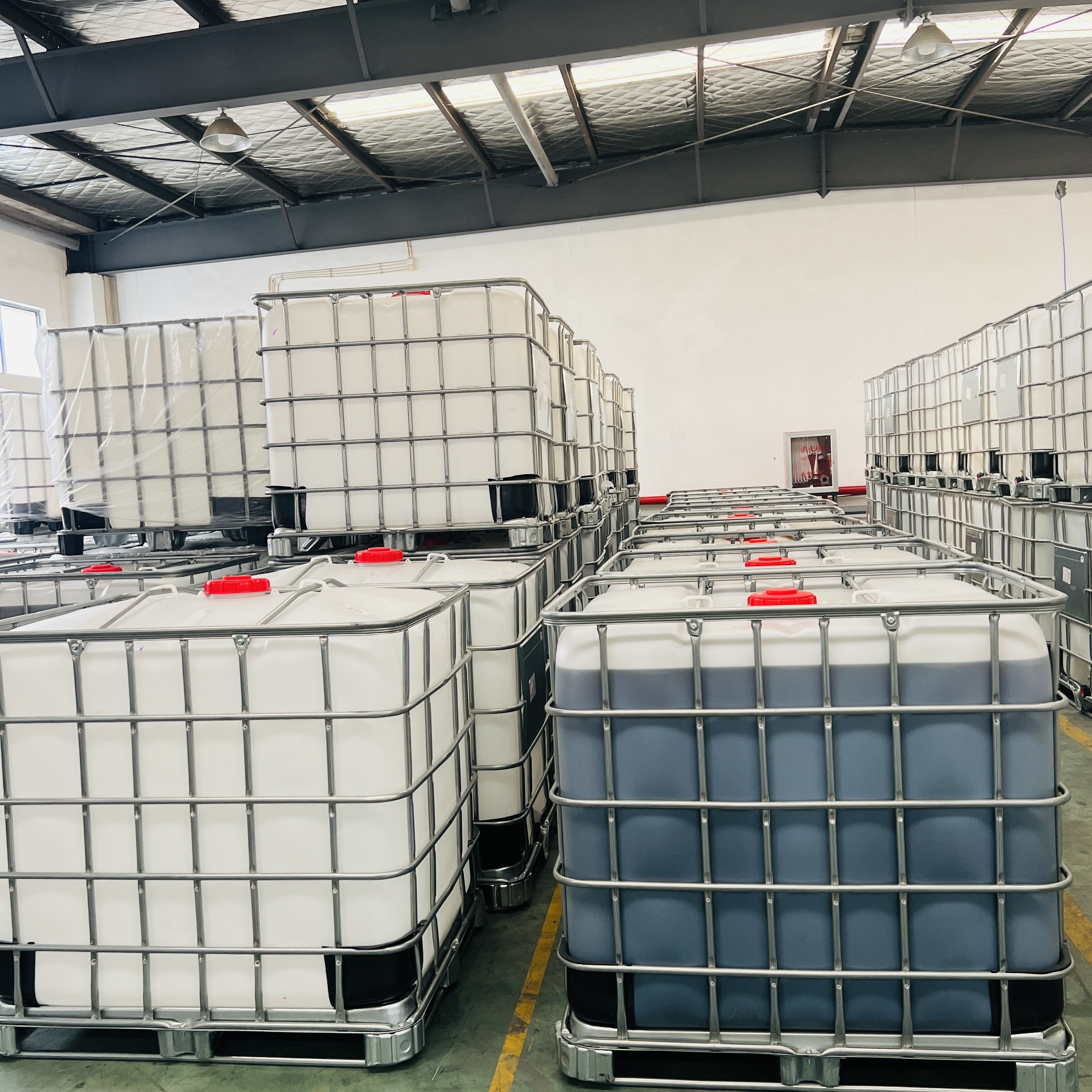

Work shop

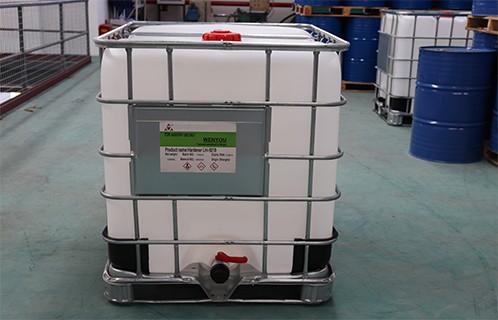

Packing & Delivery

Exhibition

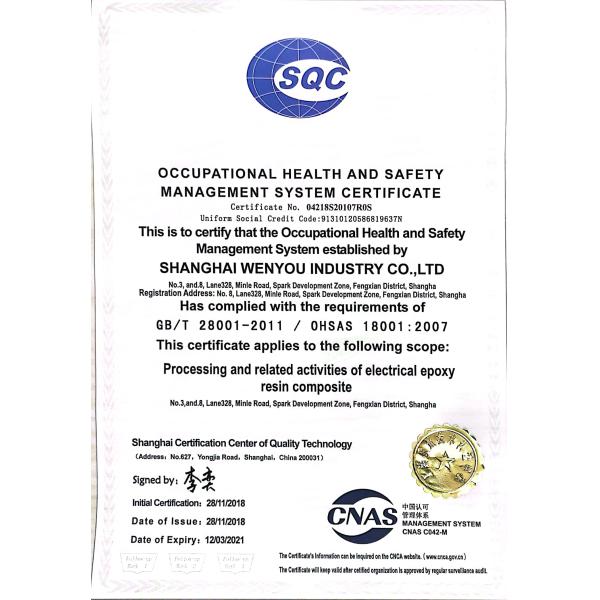

Certifications
